AIR JET FILTER
“Air Jet Filter is used as a dust collection unit to clean the ambient atmosphere, by separating the dust and other particles which are suspended in the air.“
• Flour, Semolina, and Maize Mills
• Food Industry (Tea, malt, peas & nuts, coffee, tobacco processing plants, etc.)
• Chemical Industry (Plastic, paint, detergent and similar products)
• Wood Industry
• Non-Metal Industry (Lime, Cement, Soil plants, etc.)
Ambient (dirty) air is taken into the unit with air suction provided by an external blower.
The dust is kept while the dirty air passes through the horizontal filter hoses, and discharged at the bottom of the filter.
Air Jet Filter performs cleaning of air and hoses itself in two phases described as below:
Phase I – Filtration in the N1 bag: The dirty air is purified (filtrated) in the outer surface of the hose type filter bag.
Phase II – Final cleaning in the N2 bag: Dust loaded outer surface of the filter, bags are cleaned respectively by blowing air from inside of bags. The accumulated dust is discharged out of the airlock with also a scraper. The cleaning of hose type filter bags is carried out by air at 0.5 bars, which are free of oil and water.

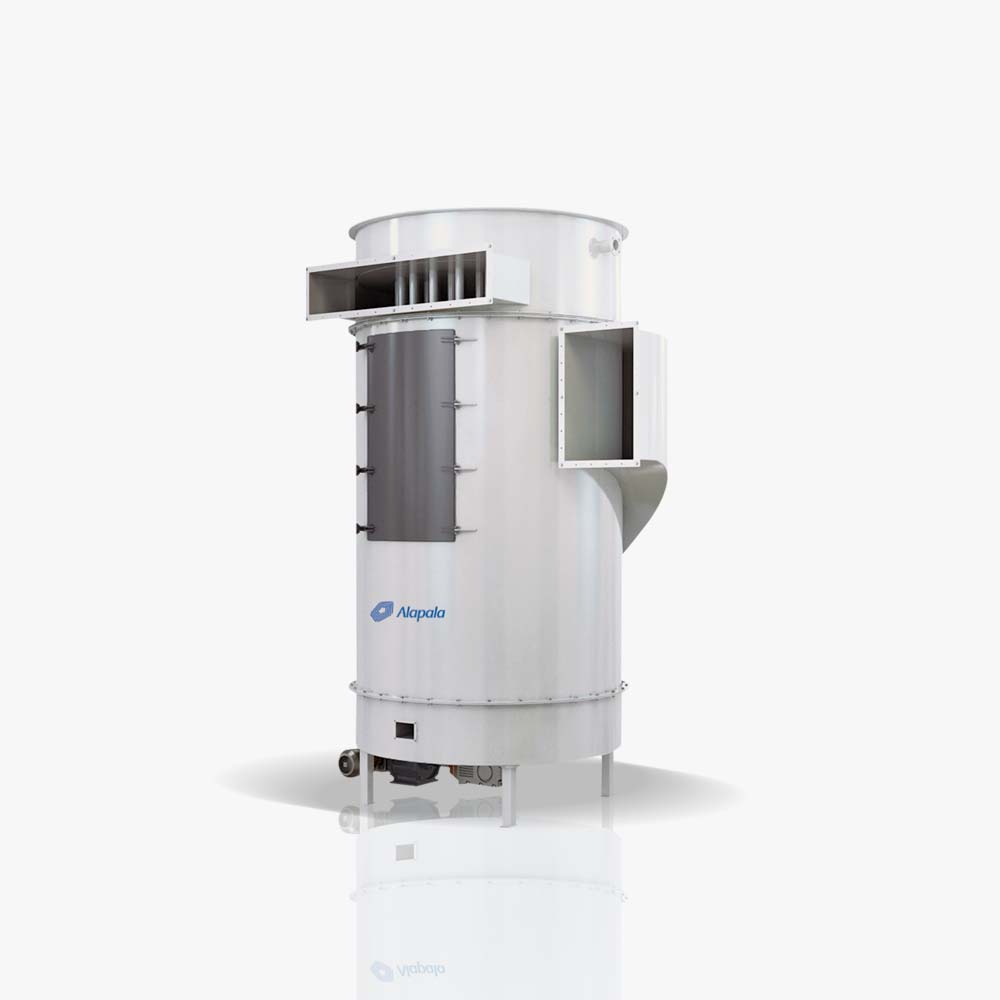

KFSA – Air Jet Filter
KFYA – High Pressure Filter
Calculation for Filter Load:
Considering the dust particle size
and adhesion, dirty air flow rate,
temperature etc. factors; the filter
load can be selected between
1.5- 6m³/ m2/ minute
Calculation for Cleaning Air
Requirement (m³/min):
30 – 40 NLt (Newton liter) x bag x
blow per minute”
Filters have different types according to the requirement of various applications in different industries:
Ambient Cleaning Filters
Interior dust collection applications with connection to the central aspiration systems.
Point Filter – Bin (Silo) top filters
In some applications, air jet filters can be placed on top of silos, tanks and containers for a dust-free discharge of the air coming from pneumatic lines.
Outdoor dust collection applications
during the raw material intake.
The air jet filter has below options
and accessories for discharge system:
• Conical Bottom – Flat Bottom Design
• Vibro Discharger
• Bottom Sweeper
• Explosion Cover ATEX
• Efficiency Testing with Manometer
• Square versions are also available upon request.
