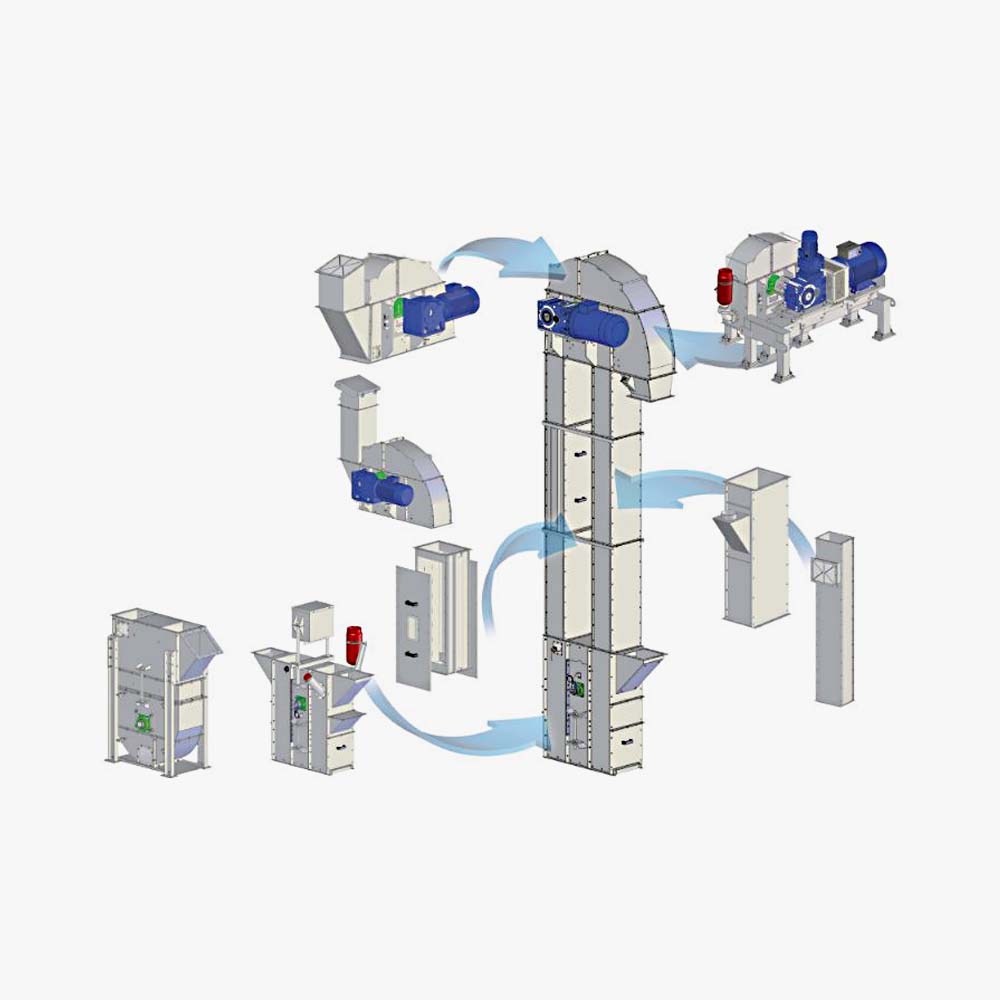

Bucket Elevator Heavy Duty
” Belt Conveyors are designed for transportation of granular or dusty products (typically cereals, oilseeds, flour, meals, and their by-product).“
• Drive unit direct coupled to the shaft (1)
• Drive head with motor, reducer, and joints, complete with support (2)
• Anti-clogging system at the discharging hopper (3)
• Belt alignment control system
• Smooth or rubber-coated pulley
• Upper cover dismountable (one or two pieces)
• Replaceble anti-wearing sheet sets, in special steel or rhinohyde
• Kit for explosion suppression system (4)
• Smooth or squirrel cage pulley
• Standard tensioning system by screws (5)
• Tensioning system by counterweight (6)
• Dust-tight tail (for dusty product applications)
• Self-cleaning tail (7)
• Speed monitoring system
• Belt alignment control system
• Explosion suppression system sensor
• Standard legs (8)
• Inspection legs (9)
• Buckets for granular products
• Buckets for dusty products
• Pressed steel or plastic material (polyethylene, polyamide,polyurethane) buckets
• Belt options: anti-abrasive, oil resistant, flame retardant, food quality
• Extra inlet hopper (10)
• Product recovery hopper (11)
• Discharging hopper with a square outlet (12)
• Over pressure discharge system with chimney (13)
• Explosion venting panel on the head (14)
• Explosion venting panel on the casing (15)
• Aspiration connection on the casing (16)
