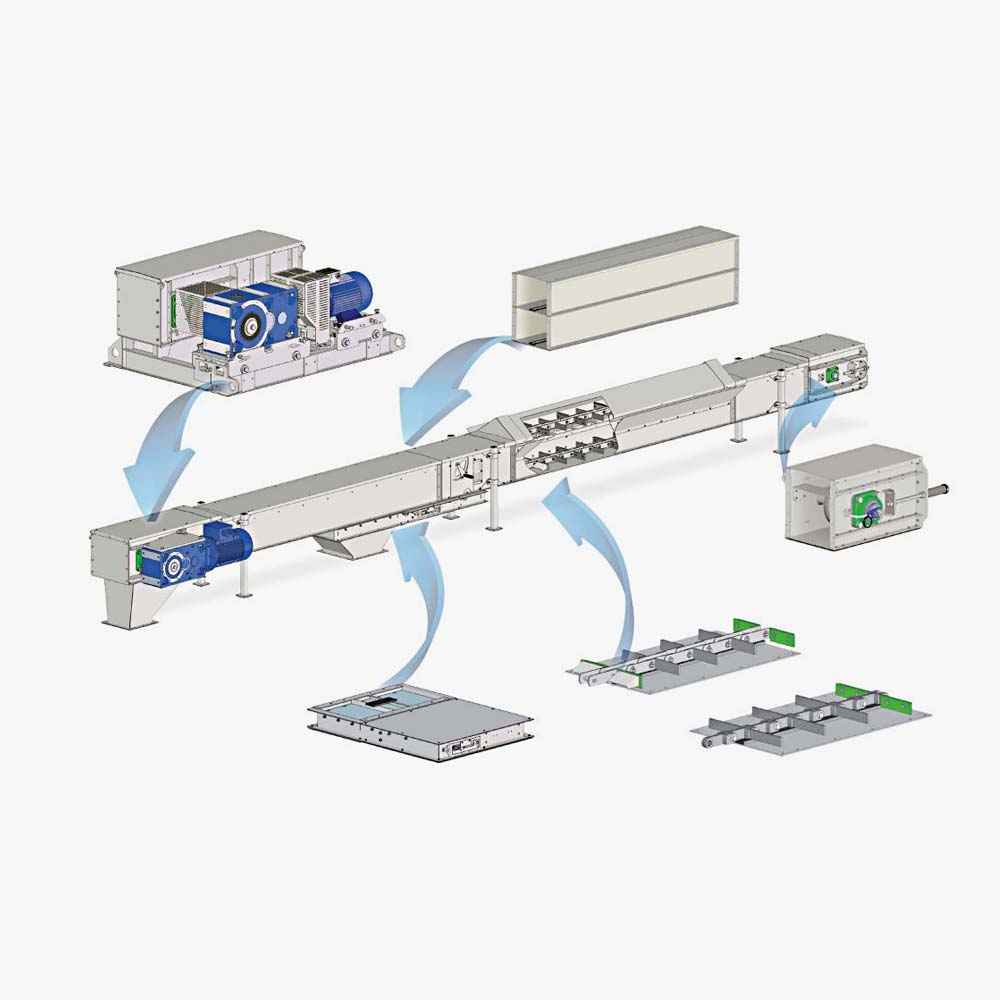

CHAIN CONVEYOR HEAVY DUTY
” Chain Conveyors are designed for transportation of granular or powdered products (typically cereals, oilseeds, flour, meals, and their by-products)“
• Wide range of machines: Customization according to the customer’s requirements
• Surface treatment by hot-dip galvanization or epoxidic dust painting (also for human food)
• Standard xxecution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22)
• Drive unit direct coupled to the shaft (1)
• Drive head with motor, reducer, and joints, complete with support (2)
• Anti-clogging system and inspection window
• Self-cleaning drive head (“drum” type).
• Belt-link scraper chains (5)
• Drop-forged chains (6)
• PE-UHMW scrapers (standard or for human food)
• Recovery buckets
• Longitudional opening (11)
• Transversal opening (12)
• Electric, pneumatic or manual control
• Limit sensors
• Chain brushing system at the
intermediate outlets
(1) Capacity calculations are based on wheat with 0.78 kg/dm³ bulk density and max 14% relative humidity.
(2) Thickness: Flanks – Bottom – Cover
(3) ISO Version = Bent-Links Scraper Chain – R Version = Drop-Forged Scraper Chain
(*) L = 2970 / 2470 / 1980 / 1470 / 990 / 490 mm (Special dimensions available upon request) – Standard elbow casings (from horizontal to inclined and from
inlined to horizontal): 5° – 10° – 15°”
• Standard tensioning system by screws (internal or external) (3)
• Tensioning system with spring buckets (4)
• Tensioning slides with self-aligning bearings
• Speed monitoring system
• Special xxecution for reversible machin
• Dust tight tail (for application with dusty products)
• Standard casings (7)
• Side-inlet casings (for intake hopper) (8)
• Double-deck casings (9)
• Casing with flow regulation system (10)
• Elbow casing (to change inclination)
• PE-UHMW chain rails with metallic central guide
• PE-UHMW bottom coating
• Reinforced steel bottom
• Standard inlet hopper
• Inlet hopper with flow regulation system
• Side inlet hopper
• Discharging hopper
• Stainless steel outlet hopper with magnetic separator
• Adjustable supporting legs
• Inspection windows
