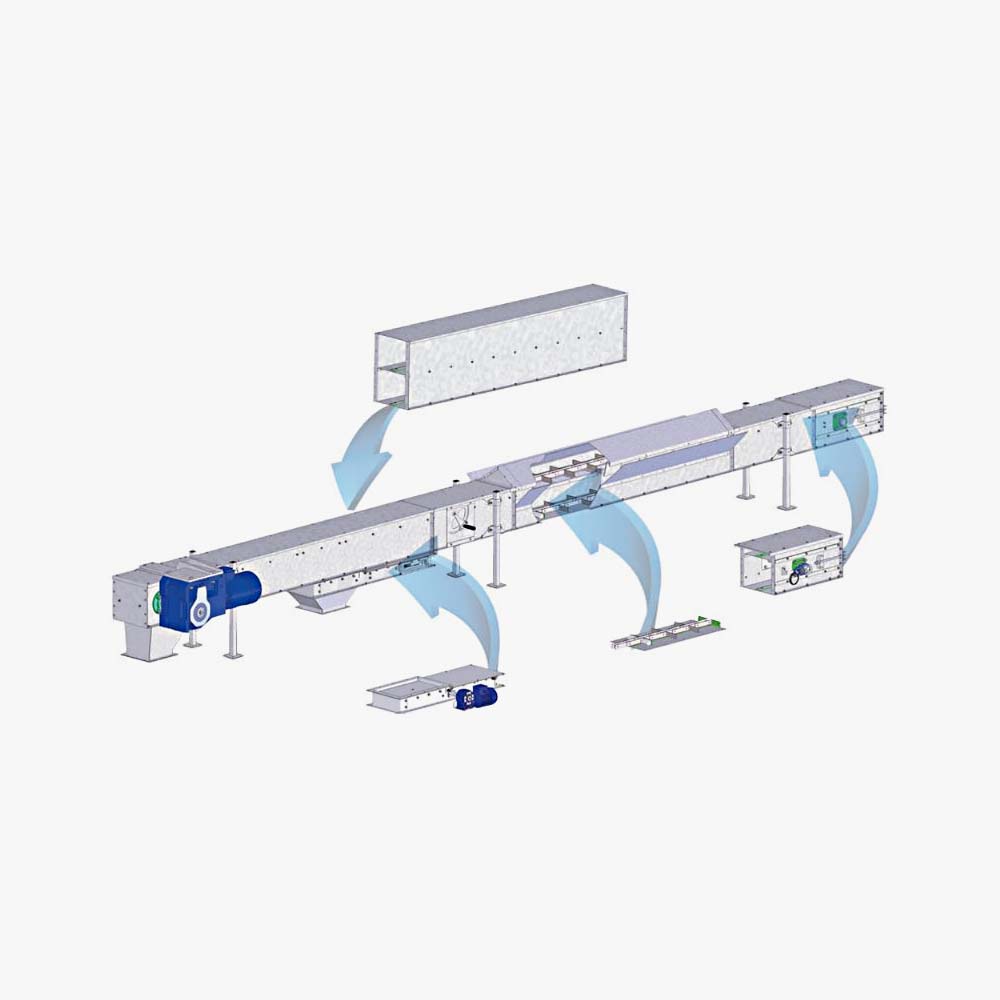

CHAIN Conveyor Heavy Duty
– TCA
“Chain Conveyors are designed for conveying cereals, in large farms and grain storage facilities.
“
• Base structure in pre-galvanized steel DX51D Z 275 UNI EN 10327
• Standard xxecution (CE) or in compliance with ATEX Directive 94/9/CE (Z=22)
Flour and Semolina Mills
• Drive unit direct coupled to the shaft (1)
• Anti-clogging sensor and inspection window
• Belt-link scraper chain (4)
• PE-UHMW scrapers
• Recovery buckets
• Longitudional opening with limit sensors
• Electric (9), pneumatic (10) or manual control
• Chain brushing system at the intermediate outlets
1) Capacity calculations are based on wheat with 0.78 kg/dm³ bulk density and max 14% relative humidity.
(2) Thickness: Flanks – Bottom – Cover
(3) ISO Version = Bent-Links Scraper Chain
(*) L = 2400 / 1900 / 1400 / 900 / 400 mm (Special dimensions available upon request) – Standard elbow casings (from horizontal to inclined and from
inlined to horizontal): 5° – 10° – 15°
• Tensioning system by screws (2)
• Tensioning slides with self-aligning bearings
• Speed monitoring system (3)
• Special xxecution for reversible machine
• Side-inlet casings (for intake hopper) (6)
• Double-deck casings (7)
• Casing with flow regulation system (manual control) (8)
• Elbow casing (for inclination changing)
• PE-UHMW chain sliding blocks with metallic central guide
• Standard inlet hopper
• Discharging hopper with square outlet
• Adjustable supporting legs (11)
